Specification

Color: Red and White
Model: 5200
Style: Modern
Assembly Required: Yes
Material: Propylene
Engine Type: Single Cylinder, Air-cooled, 2-Stroke
Ignition System: Self-reset Pull Start
Fuel Oil Mixing Bottle Capacity: 550ml/18.6Oz
Power: 2.0kw
Speed: 7500rpm
Displacement: 52cc
Oil Mixture: 25:1(90# Gasoline: Oil with 2-cycle Engine Oil)
Chain Length: 56cm/22inch
Max. Cutting Diameter: 56cm/22inch

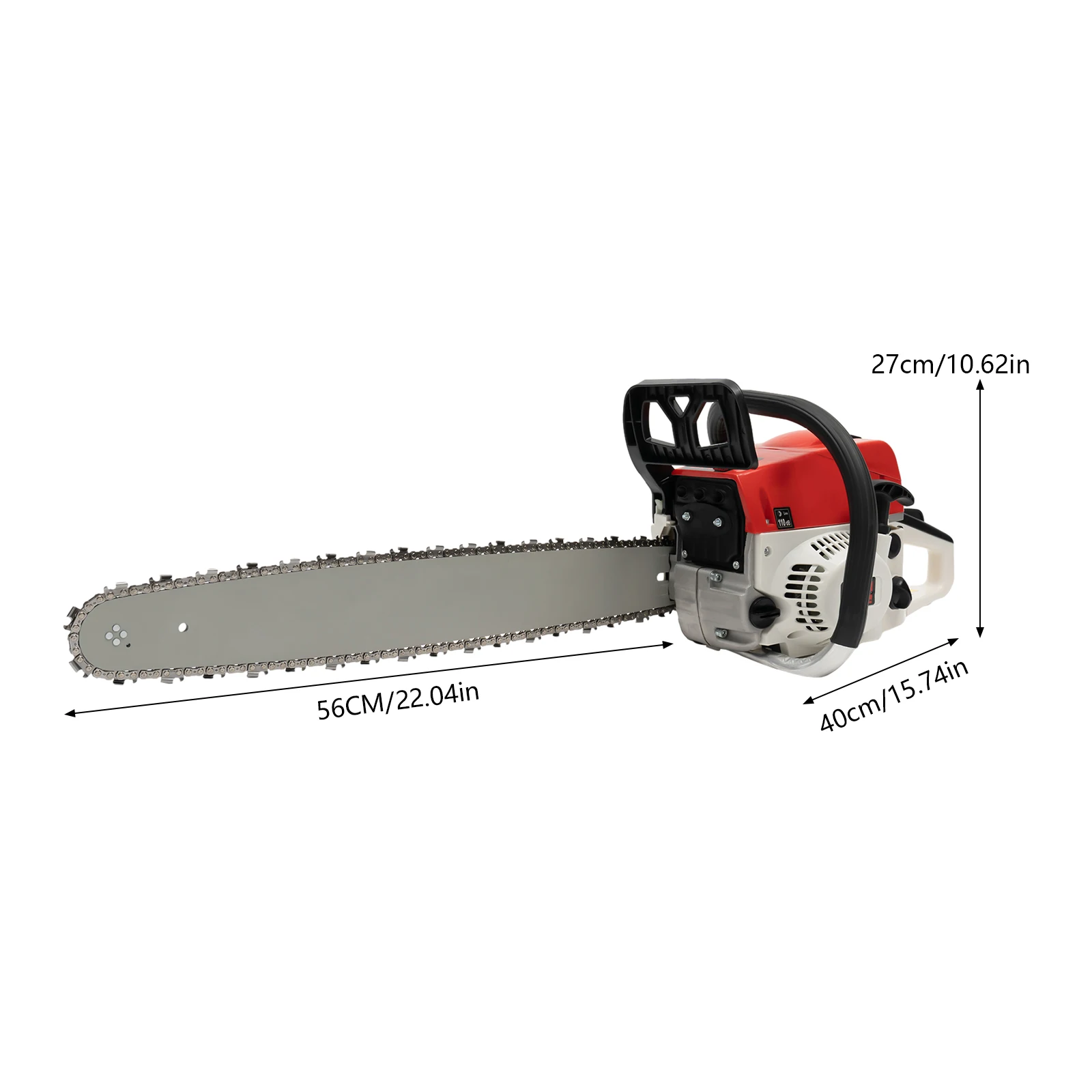

Engine Size: 40*27cm/15.74*10.62inch
Package Size: 56*45*28cm/22.05*17.72*11.02inch
Gross Weight: 8kg/17.64lbs

How to Start the Chainsaw

1. Push the Brake.
2. Move the “On/Off” switch to the “On” position.
3. Pull the choke knob fully out to position.
4. Pull the start handle(max 6 times).
5. Push the choke knob back fully.
6. Pull the starter until the engine starts.

How to Assemble the Chainsaw

1.Install the jam teeth in the right direction.
2.Install the guide bar.
3.Install the chain.
4.Cover the side cover.
5.Adjust the chain tightness.
6.Tighten the screw.

Key Features

Build to Last: It is mainly made of high-quality propylene, which is insulating, strong, solid, wear-resistant, and not easy to deform, ensuring a long service life.

Excellent Performance: The 2-stoke engine with 52cc displacement, 7500rpm high speed, 2.0KW strong power, 22" guide chain, and a deep cylinder can achieve fast cutting, thus providing excellent performance.

Cost Saving: The combination of this quality carburetor and automatic lubricating oil system enables the product to provide a stable and economical supply of chains and bars, quickly and easily adjust chain tension, and reduce friction and oil consumption.

High Safety: The double protection switches that must be pressed at the same time to work can prevent the machine from accidentally starting. The heat-sink holes on the machine also ensure good heat dissipation. Moreover, the widened brake baffle that makes emergency braking can avoid sawdust splashing, and the pressure-reducing valve improves safety.

Convenient and Comfortable: With a hand-pull spring-loaded starter handle, premium spark plug, safety switch, and throttle switch, it's convenient to use. Its cordless design and non-slip shock-absorbing ergonomic handle allow you to operate more easily and freely.

Easy to Install: The simple structure, complete accessories, and English manual allow you to install this product in minutes, saving you time and labor.

Easy to Clean: The practical filter, smooth surface, and detachable design allow you to easily clean the dust with water and a soft towel.

Application

It is suitable for forest harvesting, cutting wood, pruning branches, gardening, home woodworking, bamboo sawing, light felling, DIY crafts, ranches, farms, and so on to meet different needs.

Package Included

1* Gasoline Chainsaw
1* Chain Bar Cover
1* Fuel Oil Mixing Bottle
1* Tool Bag
1* English Manual
1* Funnel
Other Accessories for Assembly

Notes

1.Please use gasoline 90# with special 2-cycle engine oil(not included) and never use pure gasoline. Gasoline and oil mixture ratio: 25:1.
2.Please read the manual and product labeling completely before installation and use, and pay particular attention to the safety instructions included. Please take personal protection measures during operation and keep this product away from children on a daily basis.
3.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
