Product Description

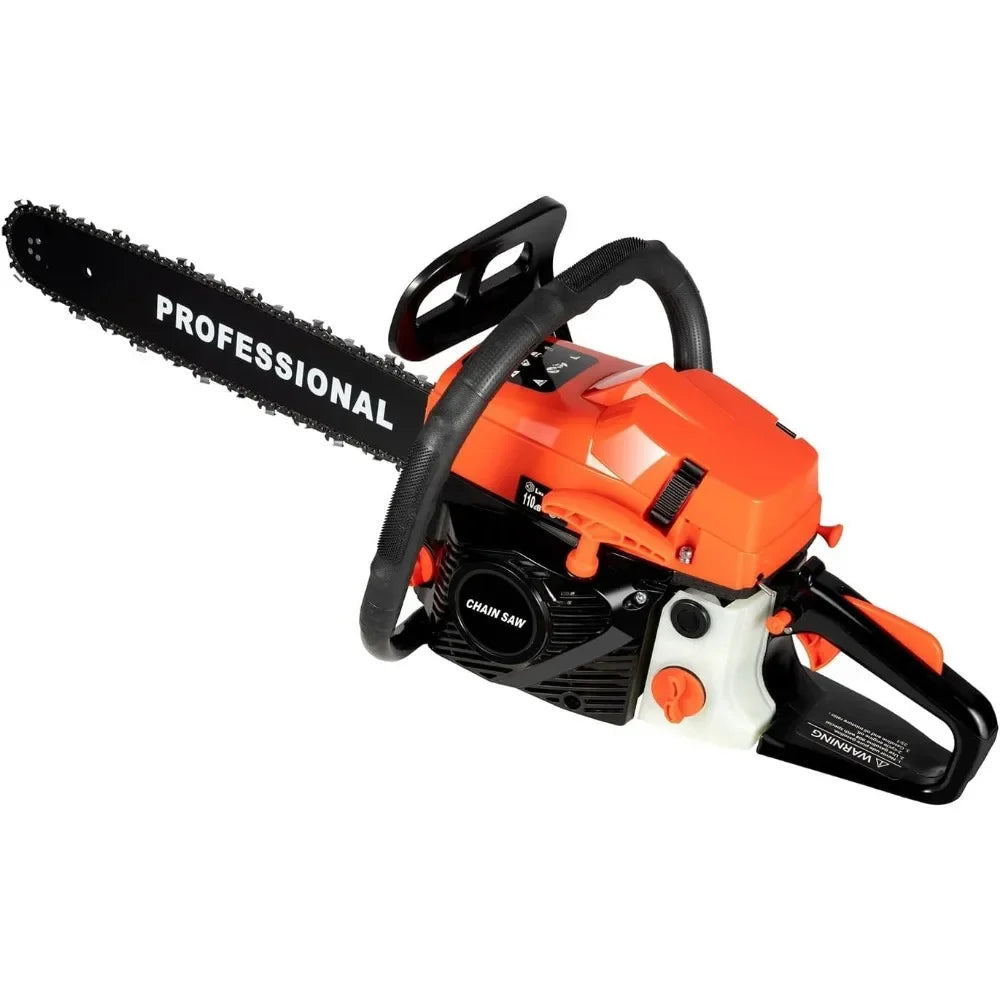

This chainsaw adopts a high-quality two-stroke engine, which has the advantages of high efficiency, high power, reliable operation, and long service life. The high hardness guide and sharp chain are durable and long-lasting, making it easier for you to cut wood. It adopts a diaphragm carburetor, which burns fully and saves fuel. What's more, the lightweight design makes it easier for you to use.
Good Heat Dissipation: The air-cooling system and the dense cooling holes in the casing dissipate heat quickly and promptly, which not only prolongs the machine's service life but also ensures that it will not stall even after a long period of operation.
Time-saving: The automatic lubrication system can lubricate the guide bar and chain during cutting without the need for frequent lubrication, saving you more time and energy.
Easy to Install: The simple structure, complete accessories, and an english manual allow you to install this product in minutes, saving you time and labor.

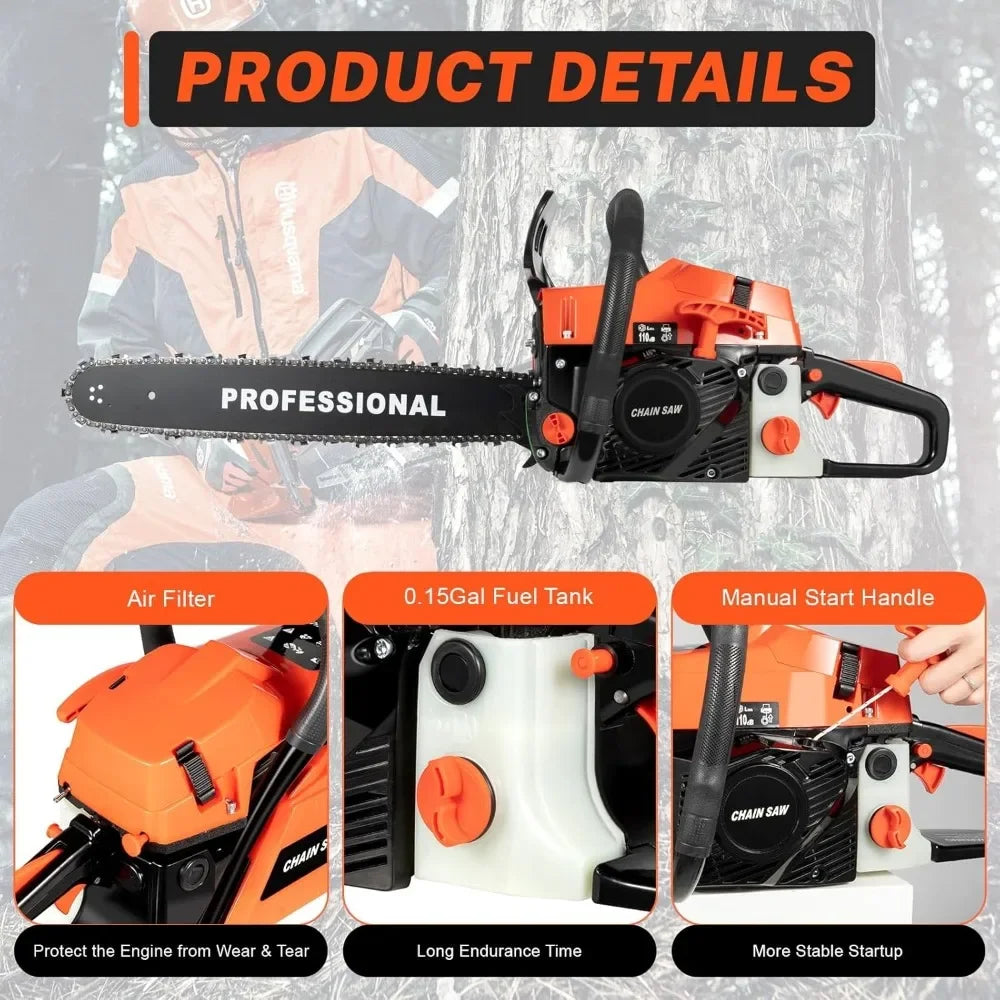

Air Filter: A quality air filter can prevent airborne impurities and dust from entering the engine interior, improving engine performance and extending service life.
Start Handle: The T-shaped ergonomic handle is easy to pull, making machine startup more convenient and faster.
Fuel Tank: The 0.15Gal tank capacity allows you to use it for longer at a time.
How to Assemble the Chainsaw
1. Install the guide plate.
2. Install the chain.
3. Align the holes to install the side cover and screw on the nut.
4. Adjust the tightness of the chain.
5. Sleeve lock nut.
6. The installation is complete.
Specification:
Color: Red, Black
Material: PP, Manganese Steel
Style: Modern
Assembly Required: Yes
Engine Type: Single Cylinder, Air-cooled, 2-Stroke
Starting Mode: Manual
Carburetor Type: Diaphragm
Fuel Tank Capacity: 550ml/0.15Gal
lubricating Oil Capacity: 260ml/0.07Gal
Fuel Ratio: 1 Engine Oil: 25 Gasoline
Chain Pitch: 0.325"
Chain Width: 0.058''

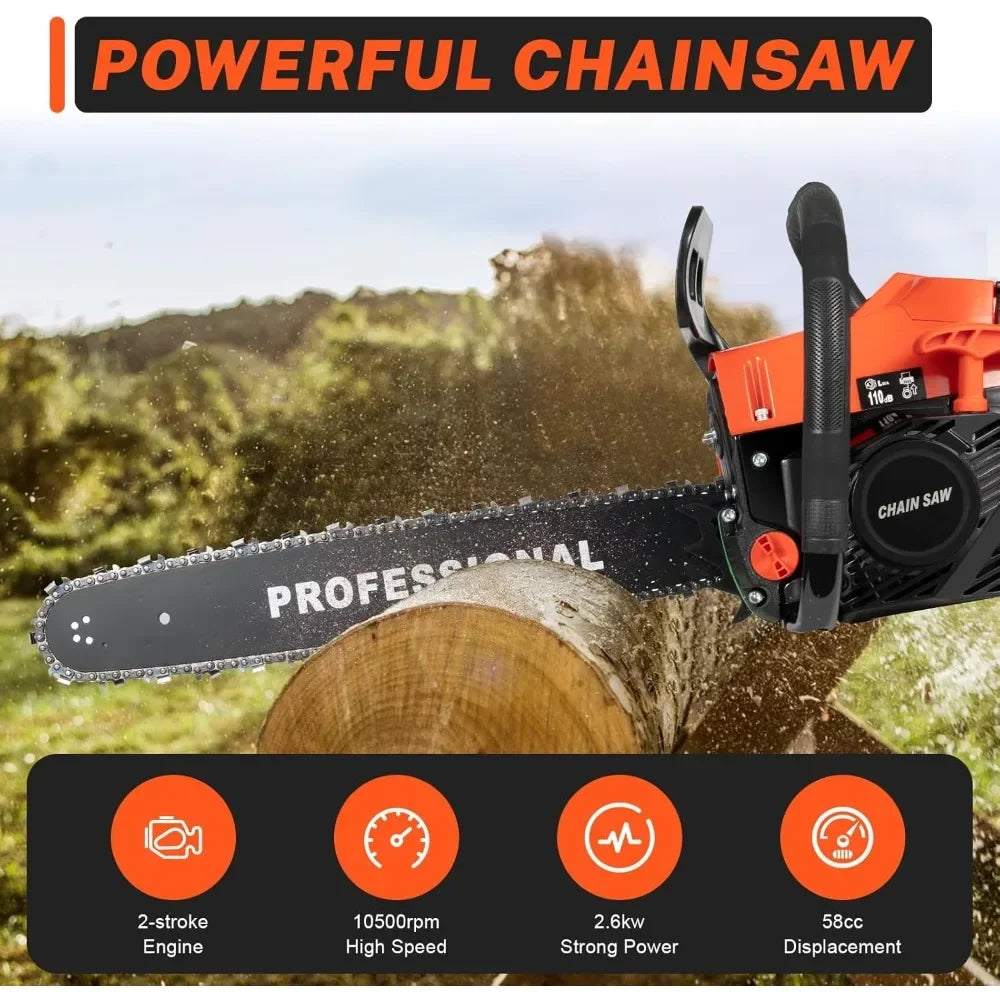

Power: 2.6kw
Horsepower: 3.53-3.6hp
Maximum Engine Rotation Speed: 10500rpm
Displacement: 58cc
Chain Length: 50.8cm/20inch
Max. Cutting Diameter: 50cm/19.69inch

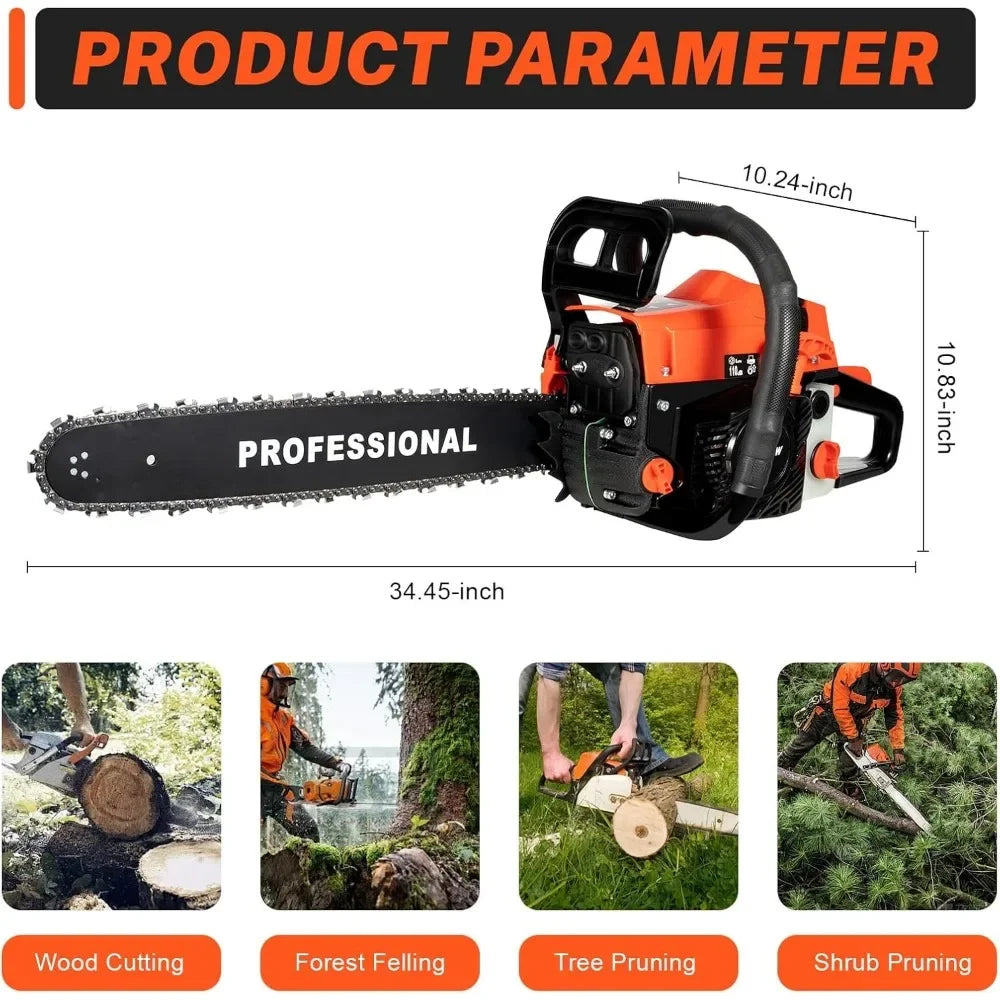

Product Size: 87.5*26*27.5cm/34.45*10.24*10.83inch
Package Size: 52.5*30.9*28cm/20.67*12.17*11.02inch
Gross Weight: 7.85kg/17.31 lbs
Net Weight: 7.05kg/15.54 lbs
Package Included:
1* Gasoline Chainsaw
1* Chain
1* Guide Bar
1* Guide Bar Cover
1* Fuel Mixing Bottle
1* Oil Hopper
1* Tool Bag
1 Pair*Gloves
1* English Manual
Other Accessories for Assembly
Notes:
1. Before use, it is necessary to add gasoline and two-stroke engine oil to the fuel mixing bottle and mix them thoroughly.
2. Please read the user manual carefully before use and pay special attention to the safety precautions included.
