Description

This chainsaw adopts a high-quality two-stroke engine, which has the advantages of high efficiency, high power, reliable operation, and long service life. The high hardness guide and sharp chain are durable and long-lasting, making it easier for you to cut wood. It adopts a diaphragm carburetor, which burns fully and saves fuel. What's more, the lightweight design makes it easier for you to use.

Specification

Color: Red, Black
Material: PP, Manganese Steel
Style: Modern
Assembly Required: Yes
Engine Type: Single Cylinder, Air-cooled, 2-Stroke
Starting Mode: Manual
Carburetor Type: Diaphragm
Fuel Tank Capacity: 550ml/0.15Gal
Lubricating Oil Capacity: 260ml/0.07Gal
Fuel Ratio: 1 Two-cycle Engine Oil: 25 Gasoline
Chain Pitch: 0.83cm/0.325in
Chain Width: 0.15cm/0.058in
Horsepower: 3.53-3.6hp

Power: 2kw
Maximum Engine Rotation Speed: 10500rpm
Displacement: 58cc
Chain Length: 50.8cm/20inch
Max. Cutting Diameter: 50cm/19.69inch

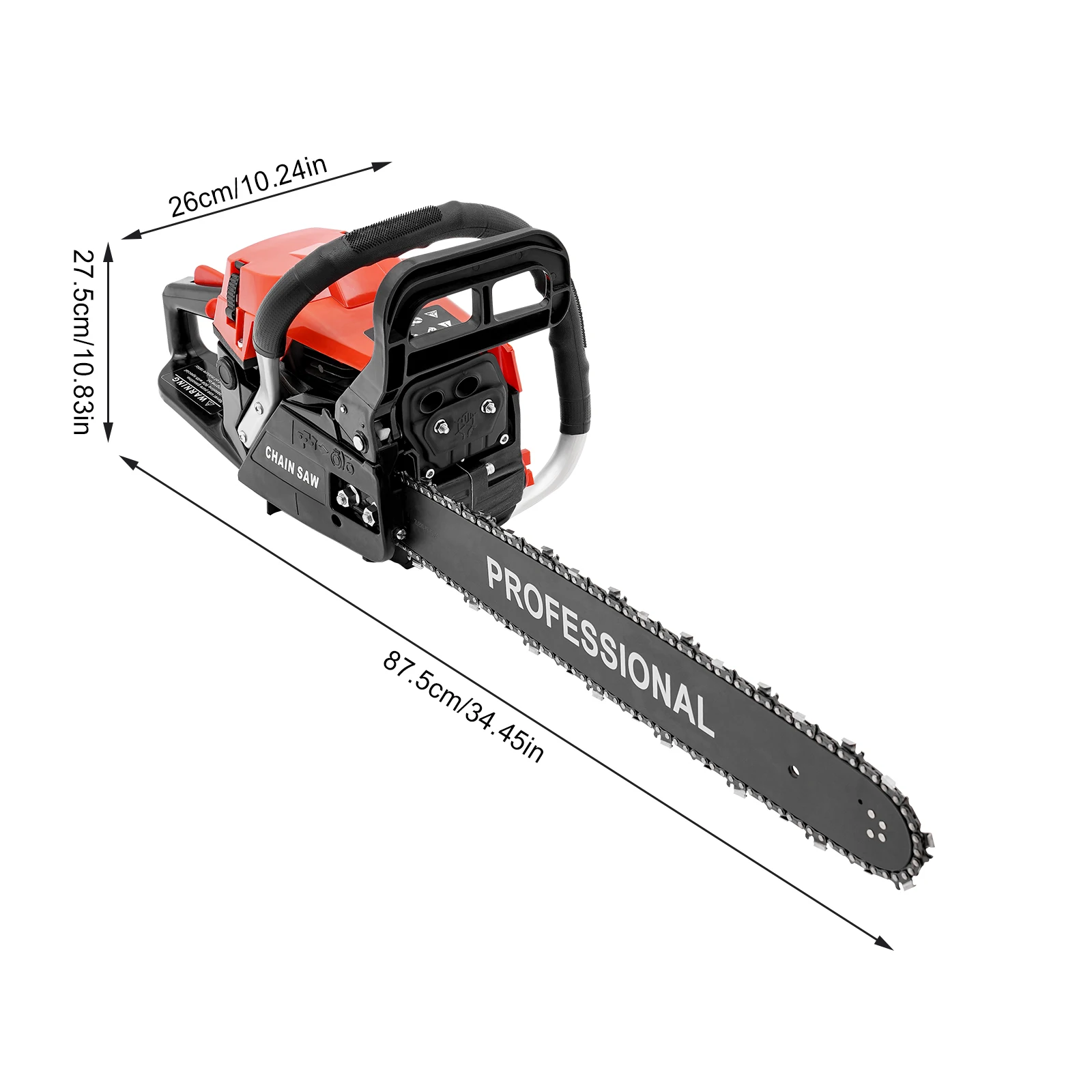

Product Size: 87.5*26*27.5cm/34.45*10.24*10.83inch
Package Size: 52.5*28*31cm/20.67*12.17*11.02inch
Gross Weight: 7.5kg/16.53 lbs
Net Weight: 6.3kg/13.89 lbs

Key Features

High-quality Material: It is made of a high-quality PP shell, manganese steel guide bar and chain, which is sturdy, durable, impact resistant, and rust resistant , and has a long service life.

Excellent Performance: It adopts a two-stroke engine with a speed of up to 10500rpm and a power of up to 2kw, which can provide stable power for the saw chain, reduce emissions and fuel consumption, and greatly improve cutting performance.

Large Cutting Diameter: The 20-inch manganese steel guide chain is hardened to cut trees quickly. Its maximum cutting diameter is 19.69 inches, which meets most cutting needs and is very efficient and practical.

High Safety: It can only be activated by pressing both switches simultaneously, which can prevent accidental touch of the throttle switch. Moreover, the high-quality brake baffle can make emergency braking, protect your hands from hurting, and avoid sawdust splashing. The flameout switch and the throttle lock button also ensure your safety.

Convenient and Comfortable: Its cordless design and lightweight(13.89lbs) allows you to operate more easily and freely. Moreover, the large handle can effectively reduce vibration, providing you with a comfortable cutting environment.

Good Heat Dissipation: The air-cooling mechanism and the dense cooling holes in the casing dissipate heat quickly and promptly, which not only prolongs the machine's service life but also ensures that it will not stall even after a long period of operation.

Application

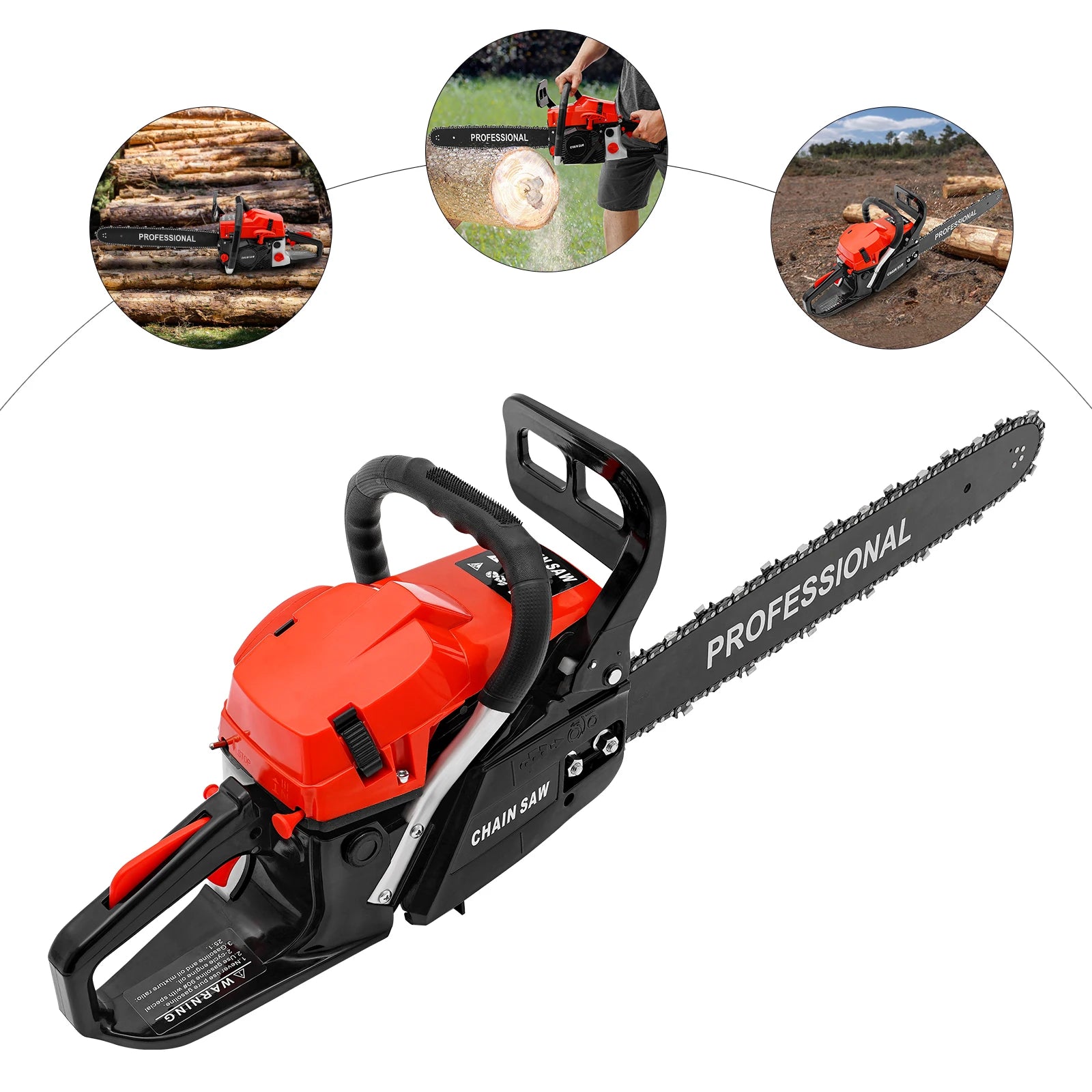

It is widely used for wood cutting, forest felling, tree pruning, and shrub pruning in gardens, farms, parks, forests, pastures, orchards, and so on.

How to Assemble the Chainsaw

1.Install the guide plate.
2.Install the chain.
3.Align the holes to install the side cover and screw on the nut.
4.Adjust the tightness of the chain.
5.Sleeve lock nut.
The installation is complete.

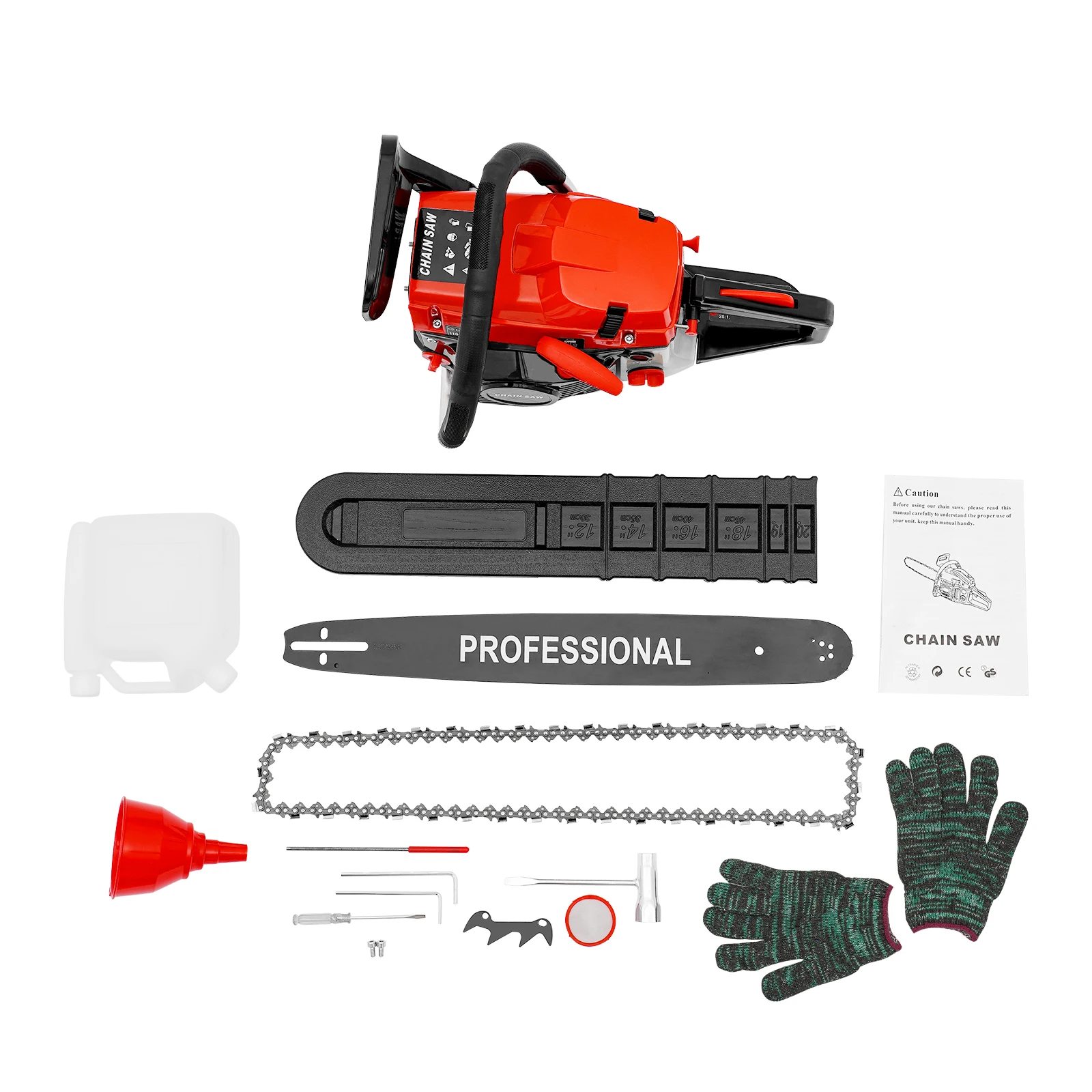

Package Included

1* Gasoline Chainsaw
1* Chain
1* Guide Bar
1* Guide Bar Cover
1* Fuel Mixing Bottle
1* Oil Hopper
1 Pair*Gloves
1* English Manual
Other Accessories for Assembly

Notes

1.Before use, it is necessary to add gasoline and two-stroke engine oil to the fuel mixing bottle and mix them thoroughly.
2.Please pay attention to safety when using this product. Do not put your hands on the guide plate chain when the machine is running to avoid being hurt.
3.Please read the user manual carefully before use and pay special attention to the safety precautions included.
